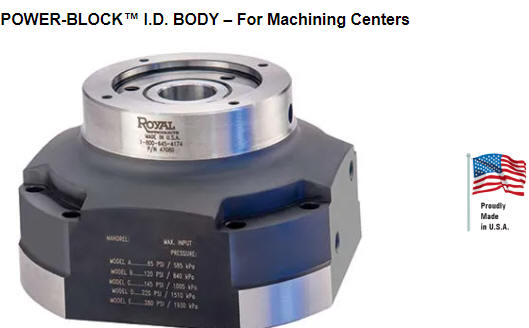

Royal Products
Power Block
For Milling Operations

  • *The Royal Power-Blockô I.D. Workholding System enables secure gripping on the internal bore of a workpiece for full external machining access.
  • *Pullback action draws workpiece securely against a ground locator for precise, consistent z-axis positioning.
  • *Unit can be mounted to a traditional machining center table and can also be used in 4th and 5th-axis applications.
  • *Fixture is designed to be actuated via hydraulic pressure and may also be actuated pneumatically for lighter-duty applications (contact us for details).
  • *For use with all Royal precision mandrels, stops, and sleeves. These items are sold separately.
  • *Heavy-duty all steel construction with a large double-acting piston provides high clamping force.
  • *Configured with both side and bottom ports for plumbing flexibility.
  • *Multiple units can be plumbed in series for single-source actuation.
  • *Ideal for high-production applications on vertical, horizontal, and five-axis machining centers.
  • *Tombstone and angle plate compatible.

    How to Order

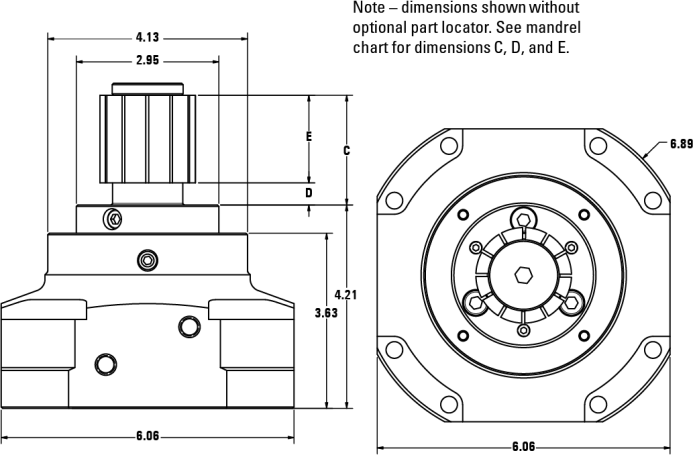

    1. Choose the appropriate body assembly based upon your application.

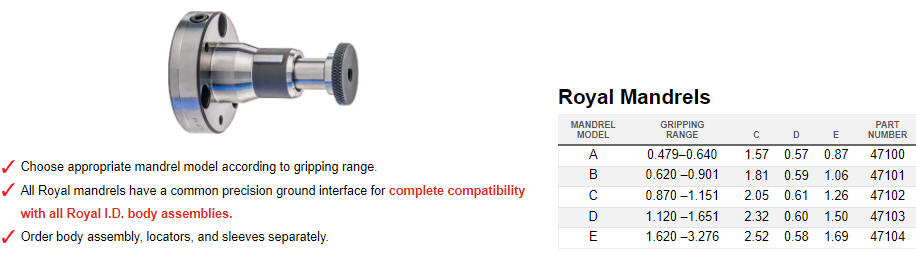

    2. Choose the appropriate mandrel (models A-E) based upon the diameter you need to All mandrels and bodies share a common mounting interface for full interchangeability.

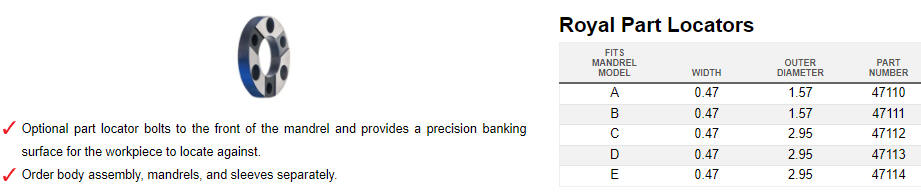

    3. If required, choose the appropriate part locator to provide a ground banking surface for the workpiece.

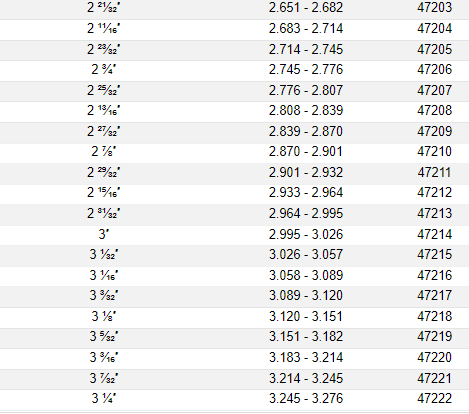

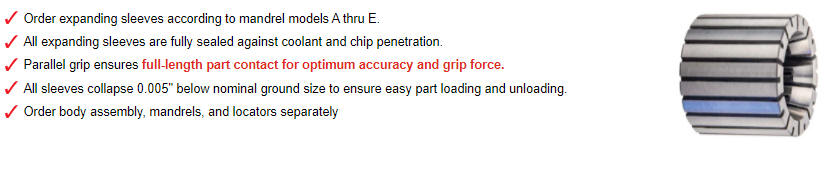

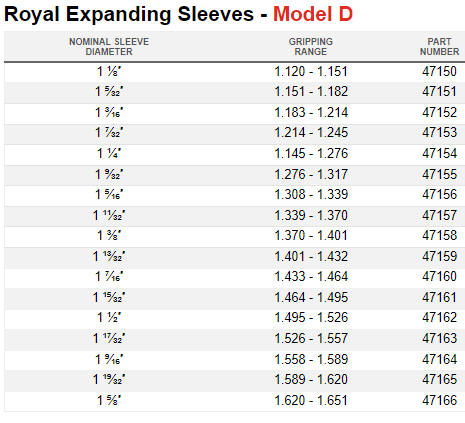

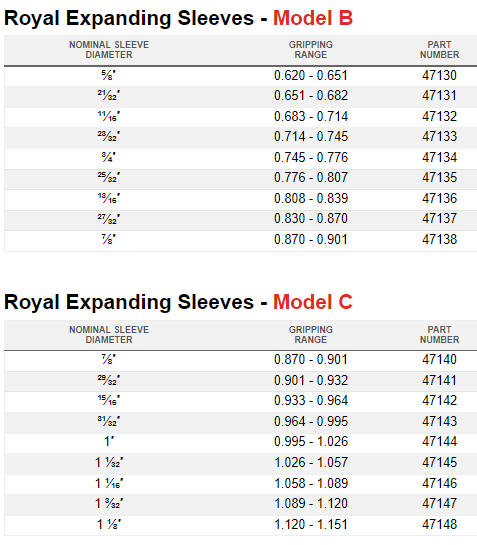

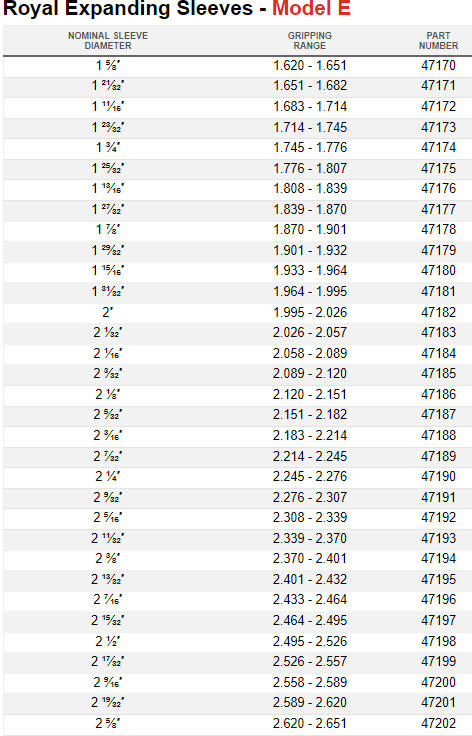

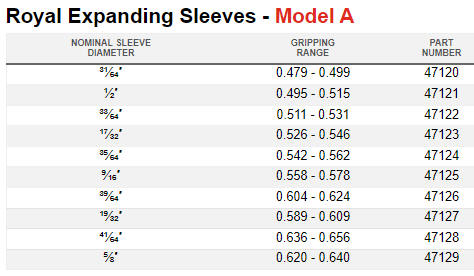

    4. Choose the appropriate expanding sleeve based upon the mandrel and diameter you need to grip
